Kit motors, also known as built-in motors or frameless motors, offer a special type of drive technology in which the motor itself has no housing or bearings. Essentially, they consist of the active components of a motor: rotor and stator.
This gives customers the flexibility to integrate the motor directly and seamlessly into their own mechanics or application.
In many cases, kit motors are designed as torque motors. Torque motors are characterized by a special geometry optimized for high torque rather than high power output. Their design is typically short and features a large diameter, which helps keep copper losses and electrical time constants low.
Kit and torque motors are ideal for applications that require high torque, compact dimensions, precise control and direct integration into the customer’s machine.

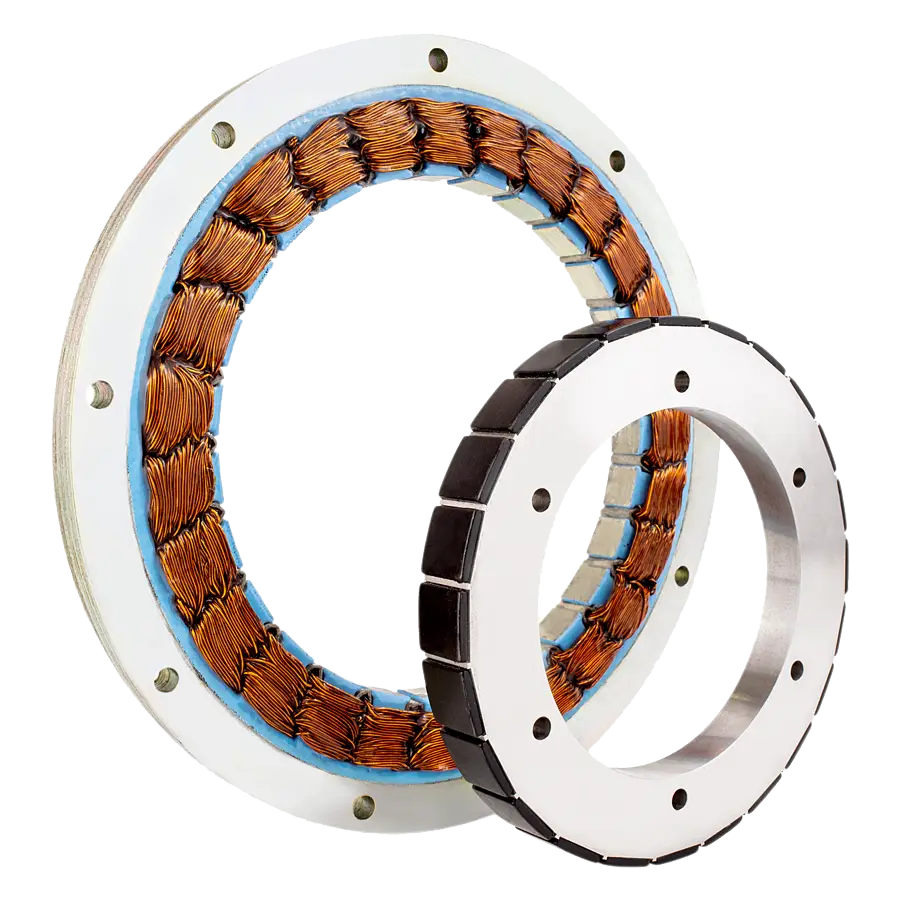

Megaflux™ Frameless Direct Drive Torque Motors
The KinetiMax™ High-Power-Density Series offers innovative frameless brushless external-rotor torque motors. These motor kits, consisting of stator and rotor, are characterized by high power density, flexibility and efficiency.
Thanks to various frame sizes, stack heights and winding options, the optimal configuration can be tailored to the specific requirements of the application.
60 – 330 Ø
0,29 – 181 (stall)

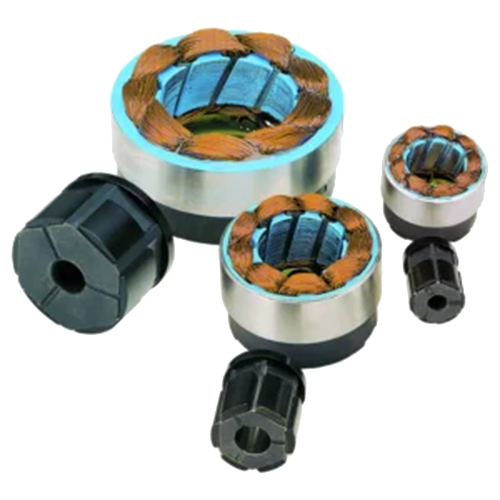

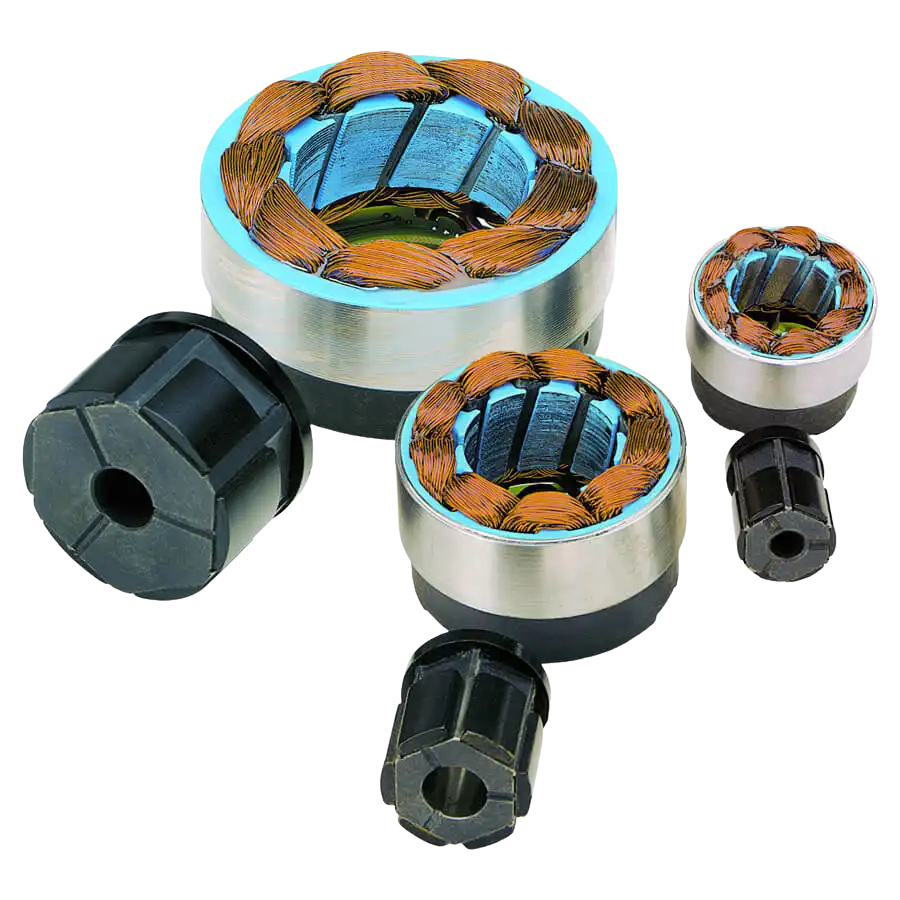

Quantum™ motors are designed for use in highly dynamic velocity or position servo systems where compact size and low weight are key system requirements.
They are optimized for high output torque, low cogging torque and precise performance in demanding motion applications.
36 – 127 Ø
0,07 – 15 (stall)

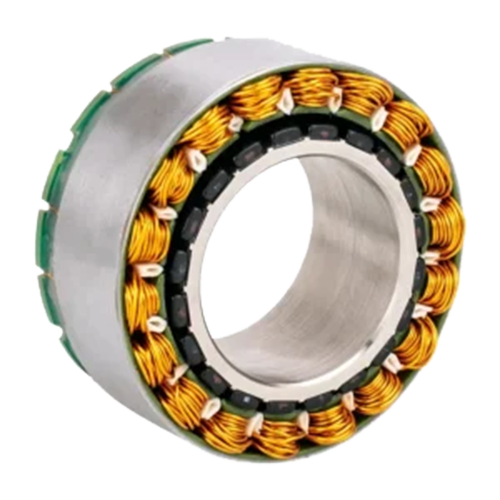

The Electroflux Series is an innovative range of high-performance motors developed for the demanding requirements of modern robotics and advanced mechanical applications.
The motors offer high precision, efficiency and reliability and are suitable for applications such as cobots, surgical robotics, exosuits and aerospace systems.
50 Ø
0,313 – 0,437

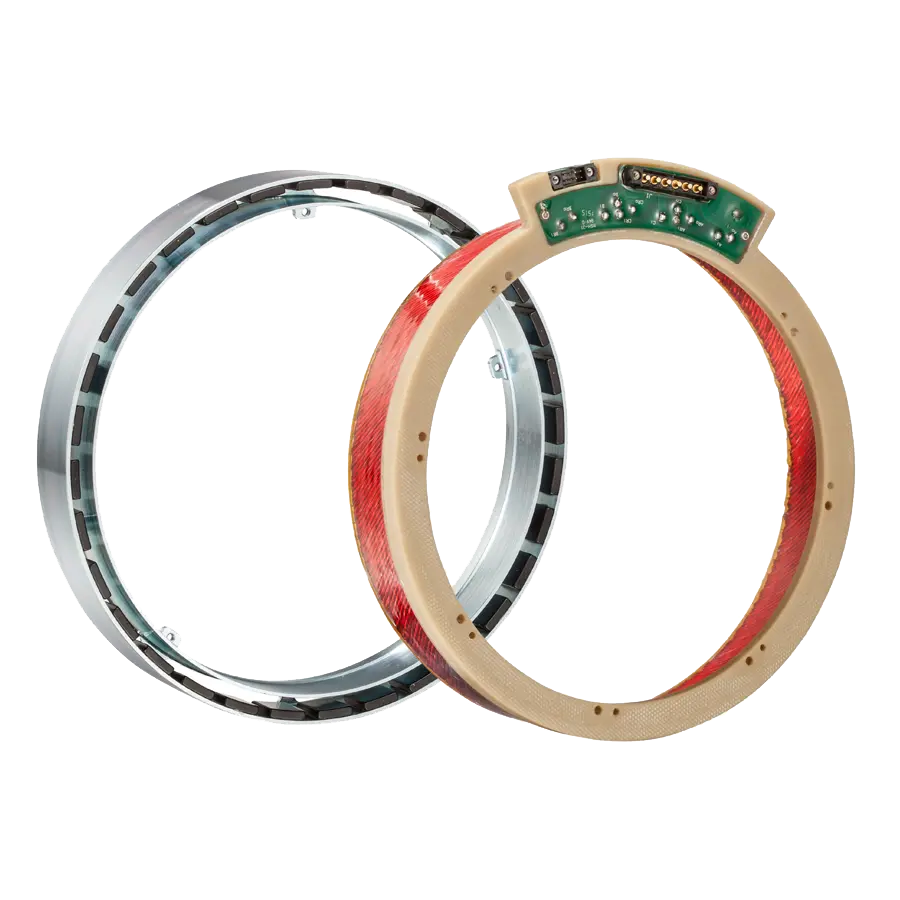

The TG Series offers slotless, brushless motor kits for applications that require smooth motion, high efficiency and precise control.
Their zero-cogging design supports excellent speed stability and performance, making them suitable for demanding direct-drive applications.
57 – 190
0,74 – 9,46
6.000 – 30.600

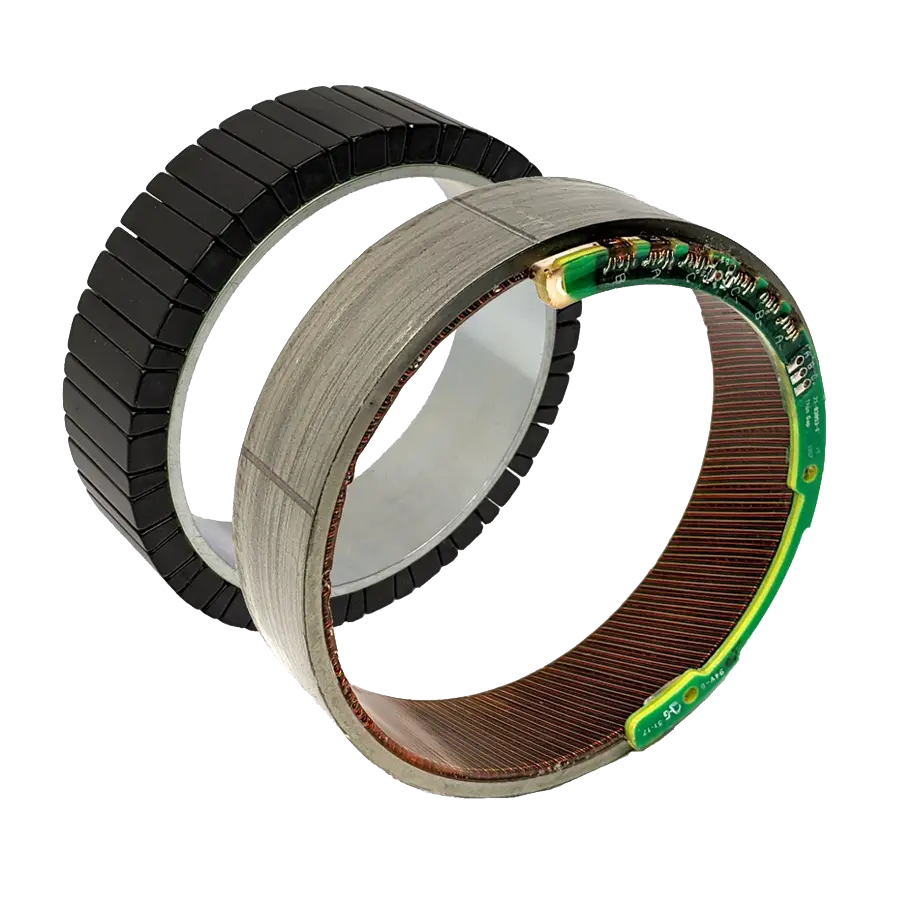

The LS Series slotless motor kits are designed for applications requiring extremely smooth motion, high efficiency and compact integration.
Thanks to their slotless design, they provide zero-cogging performance and are ideal for precision applications with high requirements for smooth running and control accuracy.
25 – 267
0,016 – 11,5
1.530 – 6.370

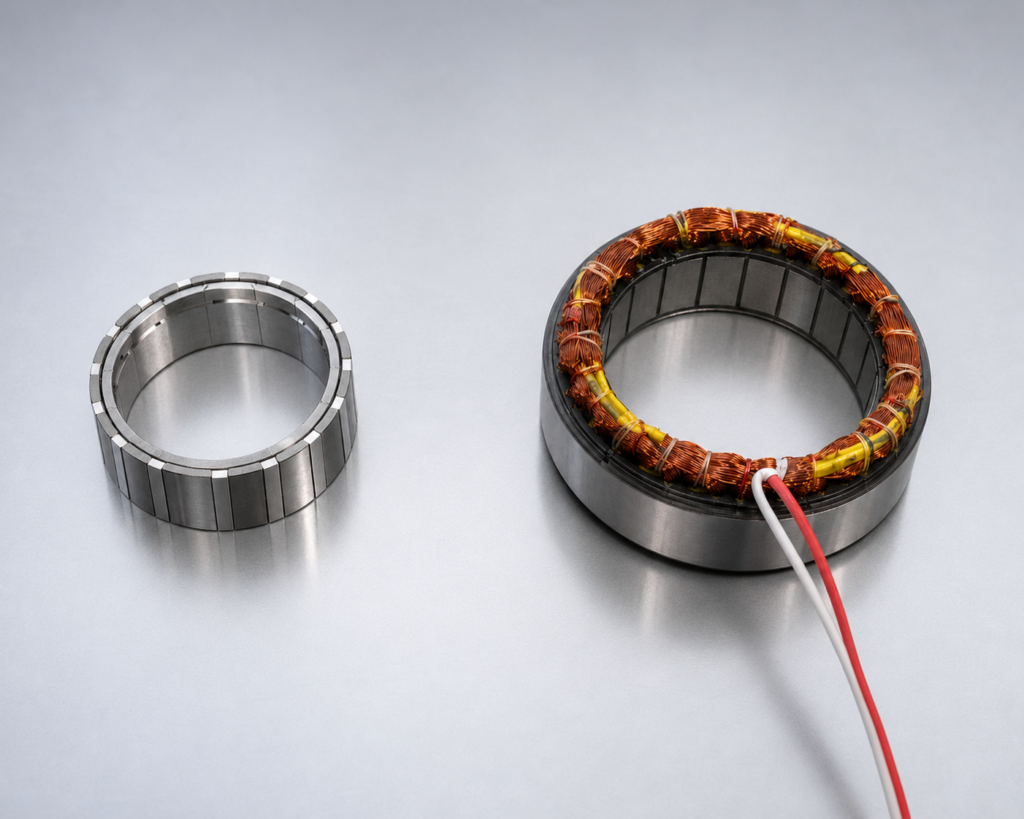

Our synchronous MSK servo motors in kit design, i.e. frameless design, are 3-phase brushless motors for demanding servo applications in industrial automation.
Key features of the MSK Series:

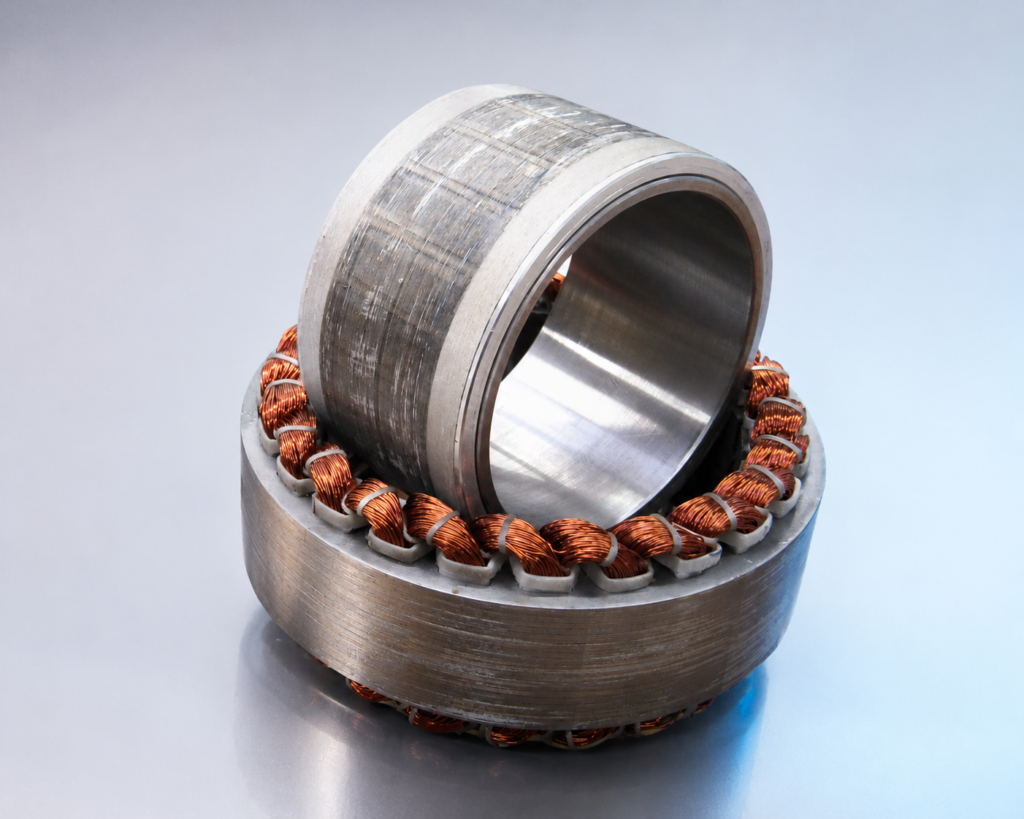

MQ SeriesTorque Motor Kit
Our MQ-Series of torque motors in kit form, are available in 7 families with increasing outside diameters (OD):

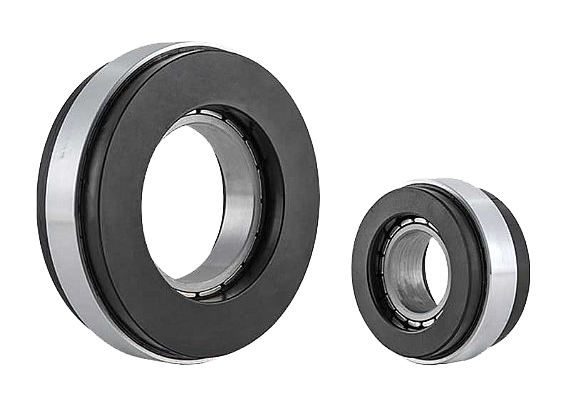

The KMF frameless direct-drive torque motor is designed for direct integration into customer applications.
It offers compact dimensions, smooth operation and high torque density for precise motion control applications.
The KBM™ Series frameless torque motors are designed for modern direct-drive applications and offer high performance, long service life and easy integration.
Optional Hall-effect sensors are available, enabling flexible use in a wide range of servo applications.
Frameless Direct Drive – Power on Demand
The TBM2G is capable of delivering high torque in an extremely compact electromagnetic design, while integrating advanced materials and windings for a wide range of applications.
Benefit from the high-torque frameless and brushless motors and take advantage of significant benefits:
The frameless motors are highly efficient across virtually all speed and torque requirements, while generating significantly less heat.

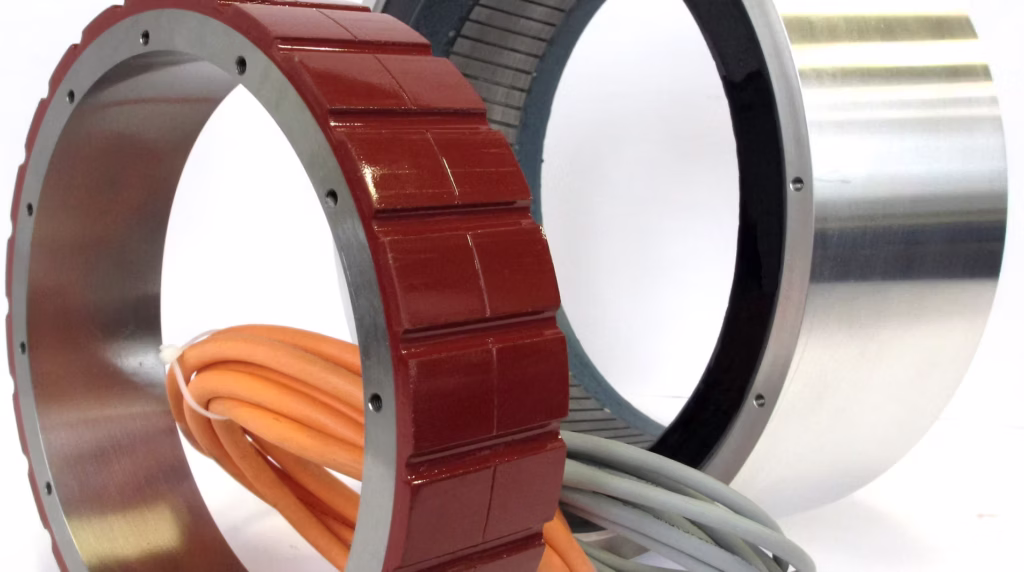

STK direct-drive motors were developed for integration at the core of servomechanisms in order to improve the axis control performance of high-torque motors.
The use of frameless direct-drive torque motors provides suitable solutions for increasing dynamic performance and accuracy, while enabling applications with demanding requirements in terms of installation space and weight.

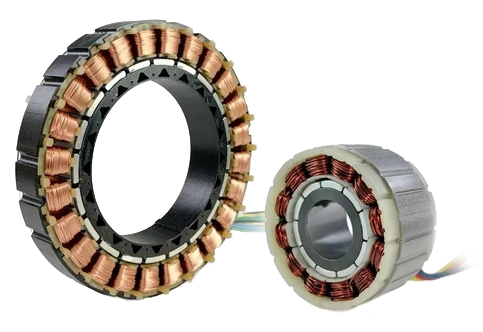

In the world of motion, precision, and reliability, our motors form the Core—the backbone of movement across diverse applications. The name “Core” reflects our belief that, whether driving a gimbal, supporting cobots, or powering demanding, high-performance systems, each motor series is an essential element that enhances the function and reliability of any system it serves.
FlexCore, PowerCore, and XtremeCore are engineered to be integral to your application, providing the foundation upon which efficiency, high performance and innovation are built.
FlexCore – High Value designs meant for balanced performance.
PowerCore – High Performance designs delivering high power density and efficiency.
XtremeCore – Uncompromised power setting the industy standard for torque and power.
