The Voice Coil Motors come in cylindrical and square configurations, feautering direct drive with no cogging or backlash, high responsiveness, contactless and wear-free operation, and smooth low-speed movement.
The voice coil motor is the simplest type of electric motor, consisting only of a magnetic housing and a coil. Its simple, adaptable design offers many advantages:
Cylindrical Voice Coil Motors
Cylindrical Voice Coil Motors

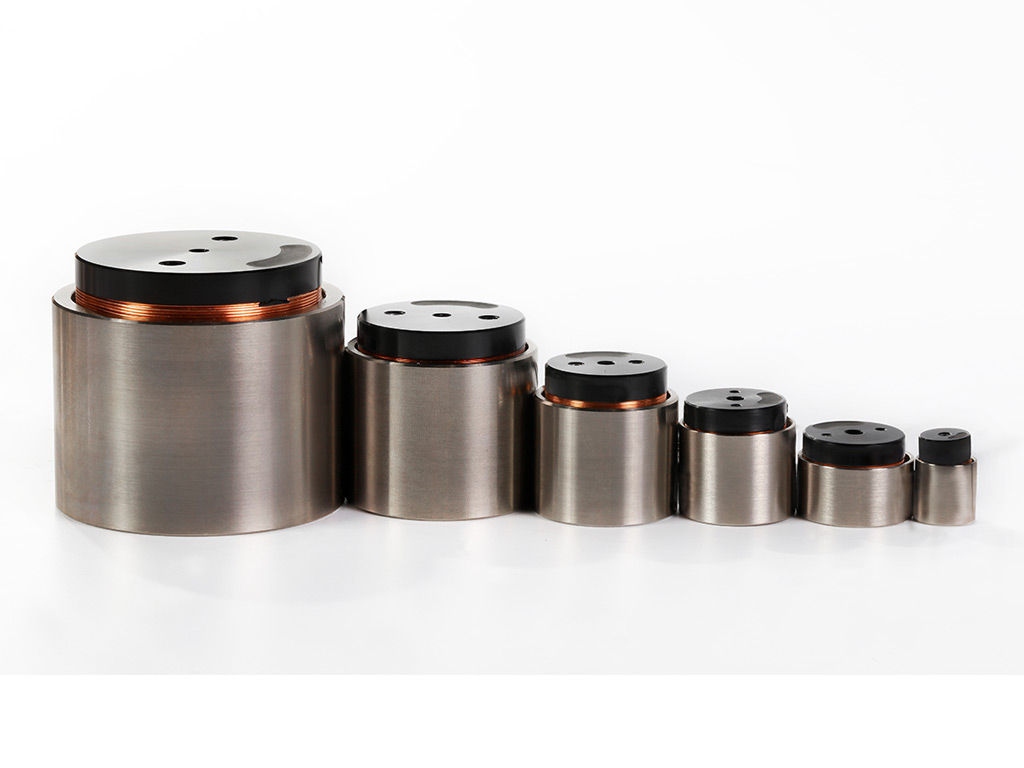

The AVM-HF series is our standard voice coil motor and is available in various sizes and strengths.
Rectangular Voice Coil Motors
Cylindrical Voice Coil Motors
Voice coil motors are single-phase motors. The AVM series is our standard voice coil motor and is available in various sizes and strengths. With no contact between coil and core movement, this voice coil motor style avoids friction and wear issues, maximizing life cycle. They are perfect for high speed pick and place applications
AVM & AVM-HF Series Voice Coil Motor – Technical Data
| Model | Continuous Force (100°C) (N) | Peak Force (N) | Stroke (mm) | Diameter (mm) | Coil Weight (g) | Total Weight (g) | Motor Length ±Stroke/2 (mm) | Max Voltage (V) |
|---|---|---|---|---|---|---|---|---|
| AVM12-6.4 | 0.86 | 3.33 | 6.4 | 12.7 | 5.0 | 12.3 | 20.4±3.2 | 60 |
| AVM12-10 | 1.0 | 3.9 | 10 | 12.7 | 6.3 | 16.7 | 30.2±5 | 60 |
| AVM12-20 | 1.0 | 3.8 | 20 | 12.7 | 8.5 | 25.8 | 45.3±10 | 60 |
| AVM12-30 | 0.9 | 3.4 | 30 | 12.7 | 14.6 | 39.7 | 68.3±15 | 60 |
| AVM14-10 | 1.0 | 3.1 | 10 | 14.2 | 3.0 | 16.6 | 28.8±5 | 60 |
| AVM14-HF-5 | 2.3 | 6.8 | 5 | 14.2 | 7.0 | 20.7 | 25.0±2.5 | 60 |
| AVM14-HF-10 | 3.2 | 9.7 | 10 | 14.2 | 10.1 | 32.5 | 40.5±5 | 60 |
| AVM19-5 | 1.7 | 7.5 | 5 | 19.0 | 9.0 | 32.8 | 24.0±2.5 | 60 |
| AVM20-10 | 1.5 | 7.4 | 10 | 20.0 | 11.0 | 56.1 | 31.0±5 | 60 |
| AVM20-25 | 1.5 | 6.9 | 25 | 20.0 | 17.8 | 76.8 | 55.0±12.5 | 60 |
| AVM20-HF-6 | 5.4 | 16.3 | 6 | 20.0 | 13.5 | 61.0 | 37.5±3 | 60 |
| AVM20-HF-15 | 4.5 | 19.8 | 15 | 20.0 | 24.3 | 113.8 | 71.0±7.5 | 60 |
| AVM20-HF-35 | 4.8 | 23.9 | 35 | 20.0 | 72.9 | 233.3 | 134.0±17.5 | 60 |
| AVM24-5 | 2.1 | 11.7 | 5 | 24.0 | 12.0 | 41.7 | 19.7±2.5 | 60 |
| AVM24-10 | 2.8 | 15.7 | 10 | 24.0 | 16.5 | 61.5 | 30.0±5 | 60 |
| AVM24-HF-5 | 6.1 | 33.5 | 5 | 24.0 | 21.5 | 103.5 | 42.9±2.5 | 60 |
| AVM24-HF-10 | 7.5 | 40.9 | 10 | 24.0 | 28.6 | 109.7 | 45.9±5 | 60 |
| AVM30-7 | 5.6 | 24.9 | 7 | 30.0 | 15.3 | 101.5 | 28.3±3.5 | 60 |
| AVM30-15 | 4.4 | 28.2 | 15 | 30.0 | 36.0 | 131.6 | 39.0±7.5 | 60 |
| AVM30-30 | 4.7 | 13.9 | 30 | 30.0 | 48.3 | 198.9 | 61.5±15 | 60 |
| AVM30-HF-4 | 7.2 | 46.1 | 4 | 30.0 | 27.7 | 126.4 | 34.5±2 | 60 |
| AVM30-HF-8 | 10.0 | 51.9 | 8 | 30.0 | 30.9 | 225.7 | 59.5±4 | 60 |
| AVM30-HF-12 | 12.9 | 81.8 | 12 | 30.0 | 57.5 | 268.0 | 70.0±6 | 60 |
| AVM35-HF-7 | 14.8 | 73.0 | 7 | 35.0 | 53.0 | 199.8 | 45.3±3.5 | 60 |
| AVM35-HF-8 | 30.5 | 152.4 | 8 | 35.0 | 85.2 | 456.6 | 84.5±4 | 60 |
| AVM35-HF-10 | 19.0 | 95.1 | 10 | 35.0 | 78.0 | 363.7 | 65.0±5 | 60 |
| AVM35-HF-15 | 20.5 | 103.0 | 15 | 35.0 | 101.0 | 363.7 | 63.0±7.5 | 60 |
| AVM35-HF-25 | 27.9 | 139.5 | 25 | 35.0 | 156.2 | 515.0 | 96.3±12.5 | 60 |
| AVM40-5 | 6.4 | 38.9 | 5 | 40.0 | 40.3 | 165.0 | 25.8±2.5 | 60 |
| AVM40-13 | 9.3 | 54.9 | 13 | 40.0 | 60.4 | 235.5 | 37.8±6.5 | 60 |
| AVM40-20 | 10.5 | 61.7 | 20 | 40.0 | 67.0 | 293.2 | 49.8±10 | 60 |
| AVM40-30 | 11.1 | 65.3 | 30 | 40.0 | 105.0 | 393.5 | 64.8±15 | 60 |
| AVM40-40 | 7.7 | 39.5 | 40 | 40.0 | 150.2 | 471.4 | 68.8±20 | 60 |
| AVM40-HF-6.4 | 17.0 | 92.0 | 6.4 | 40.0 | 49.0 | 244.0 | 39.6±3.2 | 60 |
| AVM40-HF-6.5 | 17.1 | 95.5 | 6.5 | 40.0 | 68.0 | 286.7 | 49.3±3.25 | 60 |
| AVM40-HF-10 | 25.5 | 102.1 | 10 | 40.0 | 98.1 | 432.5 | 62.0±5 | 60 |
| AVM40-HF-20 | 30.4 | 122.1 | 20 | 40.0 | 146.9 | 544.1 | 76.5±10 | 60 |
| AVM50-HF-5 | 23.1 | 92.9 | 5 | 50.0 | 82.6 | 427.2 | 35.0±2.5 | 60 |
| AVM50-HF-10 | 34.6 | 141.4 | 10 | 50.0 | 148.0 | 701.0 | 74.3±5 | 60 |
| AVM50-HF-13 | 39.7 | 165.7 | 13 | 50.0 | 144.0 | 772.0 | 70.3±6.5 | 60 |
| AVM50-HF-20 | 50.0 | 208.5 | 20 | 50.0 | 250.5 | 1181.6 | 104.3±10 | 60 |
| AVM50-HF-30 | 46.1 | 202.3 | 30 | 50.0 | 376.3 | 1508.4 | 129.3±15 | 60 |
| AVM60-12 | 21.4 | 77.8 | 12 | 60.0 | 130.0 | 610.0 | 44.0±6 | 60 |
| AVM60-25 | 26.8 | 121.6 | 25 | 60.0 | 215.0 | 907.9 | 66.1±12.5 | 60 |
| AVM60-40 | 29.0 | 131.1 | 40 | 60.0 | 446.9 | 1546.4 | 107.8±20 | 60 |
| AVM60-HF-10 | 52.2 | 223.7 | 10 | 60.0 | 236.5 | 1233.5 | 89.0±5 | 60 |
Download the Datasheets now:

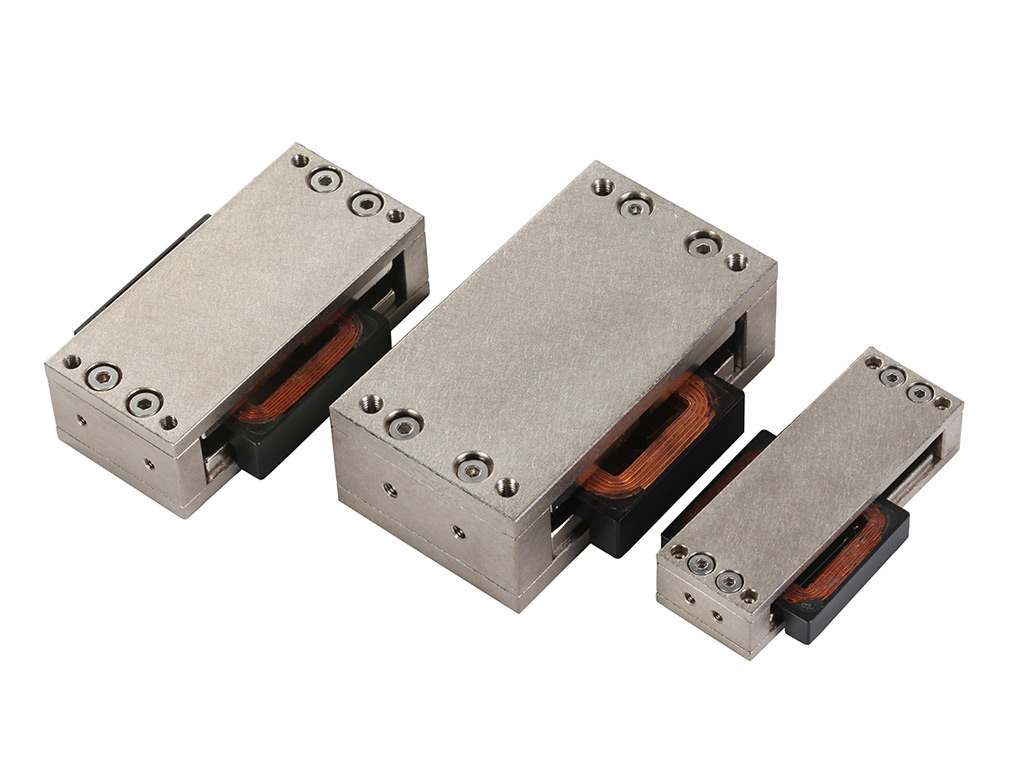

Voice coil motors are single-phase motors. The AVA series is available in three different sizes and strengths. With no contact between coil and core movement, this voice coil motor style avoids friction and wear issues, maximizing life cycle.
They are perfectly suited for high speed pick and place applications.
AVA Series Voice Coil Motor – Technical Data
| Model | Continuous Force (100 °C) (N) | Peak Force (N) | Stroke (mm) | Dimensions (L×W×H) (mm) | Coil Weight (g) | Total Weight (g) | Max. Voltage (V) |
|---|---|---|---|---|---|---|---|
| AVA1-20 | 3.84 | 11.5 | 20 | 74×39×16.6 | 17.0 | 186.0 | 60 |
| AVA2-20 | 11.69 | 35.1 | 20 | 83×54×26.1 | 45.0 | 496.0 | 60 |
| AVA3-20 | 26.32 | 79.0 | 20 | 91×69×32.1 | 72.0 | 930.0 | 60 |
Download the Datasheets now:
In addition to the series presented here, we also offer further voice coil motors from partners such as Geeplus.
The VM Series from Geeplus provides precise control of short-stroke movements and bidirectional linear actuation – ideal for applications in medical technology or optical devices.
Further information is available directly on the Geeplus website.
Do you have any questions or would you like some advice?
Please feel free to send us your technical requirements or questions in writing using the contact form linked below. We will get back to you as soon as possible after receiving your enquiry.
