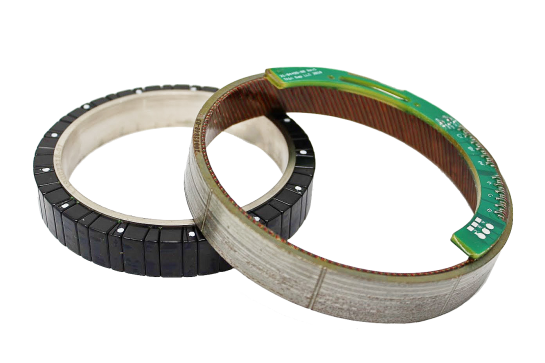

LS line targets low speed, high precision applications such as gimbals, optics, and precision robotics. Highest torque density with high power capability. Low thermal resistance at any speed.
LSI Series – Technical Data
| Motor Model | Peak Torque* (1 Sec) (N-m) | Max Continuous Torque* (N-m) | Max Continuous Speed (RPM) | Motor Constant (N-m/√W) |
|---|---|---|---|---|
| LSI 25-10 | 0.044 | 0.016 | 6370 | 0.008 |
| LSI 25-16 | 0.071 | 0.025 | 8400 | 0.009 |
| LSI 25-25 | 0.200 | 0.066 | 6400 | 0.019 |
| LSI 39-10 | 0.105 | 0.033 | 4620 | 0.014 |
| LSI 39-17 | 0.356 | 0.101 | 4600 | 0.029 |
| LSI 39-39 | 1.020 | 0.279 | 4600 | 0.050 |
| LSI 51-13 | 1.01 | 0.14 | 1820 | 0.035 |
| LSI 51-25 | 1.77 | 0.35 | 3300 | 0.073 |
| LSI 59-13 | 1.46 | 0.15 | 2850 | 0.048 |
| LSI 59-22 | 3.79 | 0.41 | 2440 | 0.091 |
| LSI 75-12 | 1.13 | 0.29 | 2500 | 0.072 |
| H-LSI 75-12 | 1.36 | 0.32 | 2500 | 0.072 |
| LSI 75-20 | 2.34 | 0.66 | 2500 | 0.120 |
| LSI 75-30 | 5.49 | 1.04 | 2500 | 0.182 |
| LSI 85-13 | 4.72 | 0.4 | 2000 | 0.099 |
| LSI 105-21 | 13.5 | 1.2 | 3000 | 0.198 |
| LSI 105-33 | 24.4 | 1.77 | 2050 | 0.277 |
| LSI 130-23 | 12.1 | 2.25 | 1530 | 0.396 |
| LSI 130-40 | 25.5 | 4.24 | 1600 | 0.517 |
| LSI 146-16 | 18.1 | 1.48 | 1600 | 0.277 |
| LSI 152-14 | 15.8 | 1.36 | 1590 | 0.264 |
| LSI 152-29 | 41.3 | 3.87 | 2000 | 0.486 |
| LSI 152-55 | 103 | 7.4 | 2500 | 0.768 |
| LSI 187-46 | 241 | 12.01 | 1250 | 1.36 |
| LSI 224-31 | 71.0 | 8.73 | 1300 | 1.09 |
| LSI 224-67 | 218 | 25.5 | 1300 | 2.02 |
| LSI 267-32 | 184 | 12.5 | 2000 | 1.185 |
| LSI 267-58 | 191 | 24.4 | 2200 | 2.119 |
LSO-Serie Outrunner – Technical Data
| Motor Model | Peak Torque* (1 Sec) (N-m) | Max Continuous Torque* (N-m) | Max Continuous Speed (RPM) | Motor Constant (N-m/√W) |
|---|---|---|---|---|
| LSO 225-51 Outrunner | 210.0 | 11.35 | 920 | 1.223 |
| LSO 225-66 Outrunner | 106.0 | 17.86 | 920 | 1.315 |
| LSO 393-31 Outrunner | 93.0 | 14.47 | 235 | 1.311 |
* Torque values are based on the LS Series motor kits being unmounted. Possible torque values can be up to 10-15% higher when in a housing.
