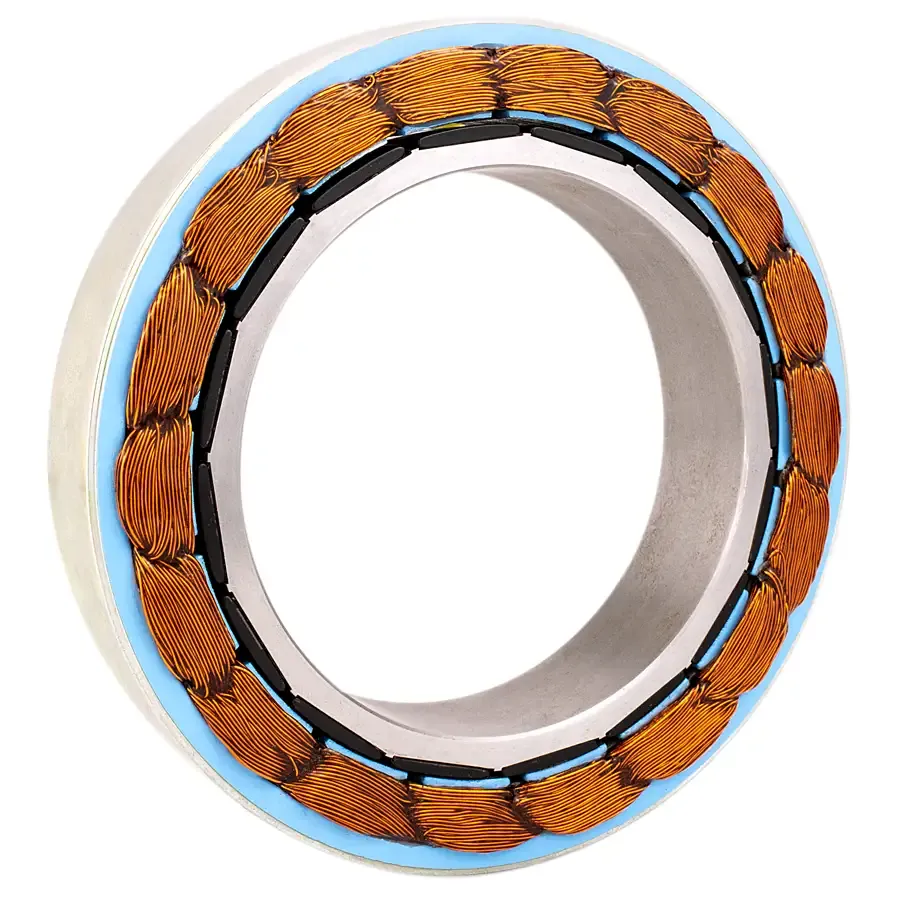

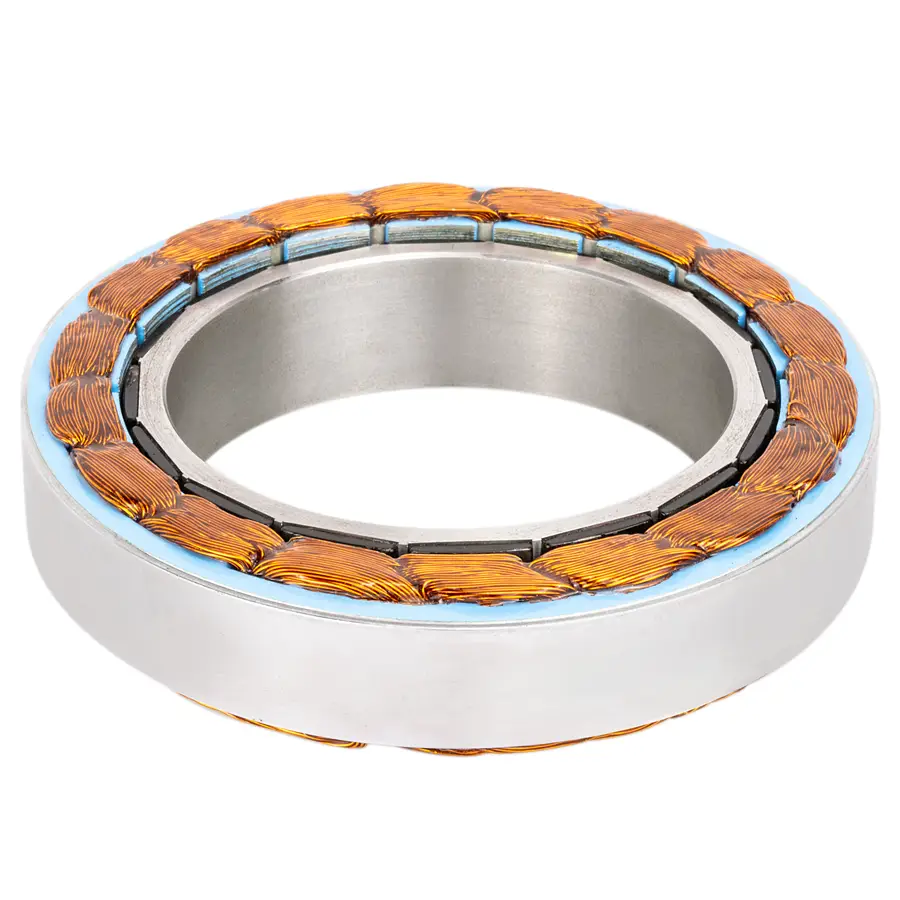

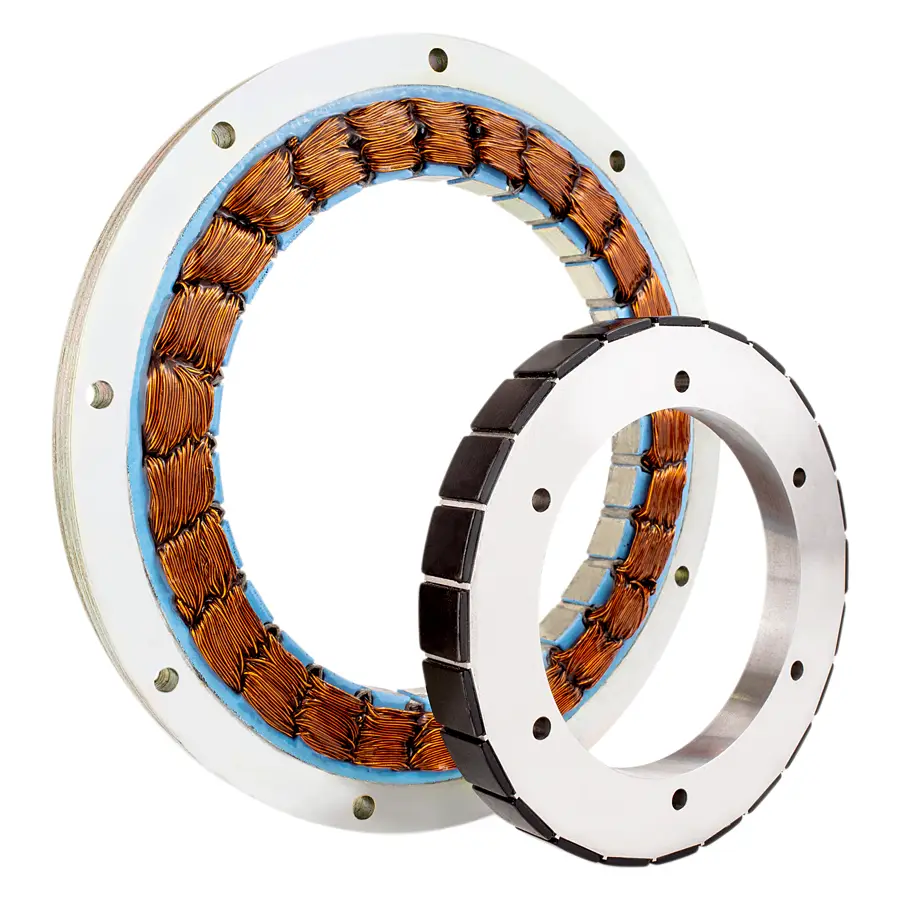

The Megaflux series is a family of high-performance frameless, direct-drive brushless torque motors.
The Megaflux series of high performance frameless direct drive brushless torque motors includes 12 frame diameters ranging from 60 through 330 mm with multiple stack lengths for each diameter, insuring that one of our standard models will likely meet your exact requirements.
Continuous stall torque ranges up to 181 Nm. Megaflux frameless torque motors offer a clear ID aperture of up to 582 mm.
Modified standards and completely custom versions of Megaflux direct drive torque motors are often provided to meet specific application demands.
Megaflux Frameless Direct Drive Torque Motors – Technical Data
| Series | Frame Size (OD) mm | Frame Size (ID max.) mm | Stack Length mm | Motor Voltage VDC | Continuous Stall Torque Nm | No-load Speed RPM |
|---|---|---|---|---|---|---|
| MF0060 | 60 | 36 | 8-55 | 48, 150, 300 | 0.3 - 1 | 2076 - 7098 |
| MF0076 | 76 | 47 | 8-55 | 48, 150, 300 | 0.5 - 2.2 | 1640 - 6447 |
| MF0095 | 95 | 58 | 8-55 | 48, 150, 300 | 0.9 - 4.4 | 1300 - 5436 |
| MF0127 | 127 | 84 | 8-55 | 48, 150, 300 | 1.6 - 8.4 | 939 - 5097 |
| MF0150 | 170 | 74 | 10-101 | 48, 150, 300 | 3.1 - 25 | 416 - 2500 |
| MF0210 | 230 | 130 | 10-101 | 48, 150, 300 | 8 - 75 | 338 - 1894 |
| MF0255 | 275 | 172 | 10-101 | 48, 150, 300 | 10 - 103 | 280 - 1591 |
| MF0310 | 330 | 210 | 10-101 | 48, 150, 300 | 17 - 181 | 100 - 1260 |
Download the datasheets now:
Do you have any questions or would you like some advice?
Please feel free to send us your technical requirements or questions in writing using the contact form linked below. We will get back to you as soon as possible after receiving your enquiry.
