Nano Servo Controller

Choose from EtherCAT and CANopen models. Both options offer optimal cost per node.
Learn more

Servoregler Modul Nano

Choose between EtherCAT and CANopen models. Both options provide an optimal cost-benefit ratio per node. Nano is the smallest servo drive and can be mounted directly on the motor or within robotic joints. It can satisfy requirements of the robotics, AGV, industrial machinery, medical/life sciences, and aerospace industries.

Nano Module

DIGITAL SERVO DRIVE FOR BRUSH & BRUSHLESS MOTORS
Peak currents up to 70 A
View Product

Nano Plus Module

DIGITAL SERVO DRIVE FOR BRUSH & BRUSHLESS MOTORS
Peak currents up to 70 A
View Product

Nano HP Module

DIGITAL SERVO DRIVE FOR BRUSH & BRUSHLESS MOTORS

Peak currents up to 70 A
View Product

Nano Plus HP Module

DIGITAL SERVO DRIVE FOR BRUSH & BRUSHLESS MOTORS

Peak currents up to 70 A

View Product
Nano Module​

Nano Module​ EtherCAT/ CANopen (NES/NPS)

The NES/NPS module may be implemented in a customer application using connectors only, or the power pins may be soldered for high-load current applications. The NES-Z/NPS-Z is a small form factor available for immediate integration into a customer application with industry-standard connectors.

Specifications

Nano Module – Technical Data

TypeVoltage [Vdc]Continuous Current [Arms/Adc]Peak Current [Arms/Adc]Form FactorVersionDimensions HxWxD [mm]Digital I/OFeedback
NES/NPS-090-109-90510Single-axis modulePluggable35 x 30 x 23.46 / 4Incremental, Digital Halls, BiSS, SSI
NES/NPS-090-10-DDevelopment board97.1 x 112.4 x 45
NES/NPS-090-10-ZConnector-ready35 x 47 x 33.6
NES/NPS-090-703570Pluggable35 x 30 x 23.4
NES/NPS-090-70-DDevelopment board97.1 x 112.4 x 45
NES/NPS-090-70-ZConnector-ready35 x 47 x 33.6
NES/NPS-180-1020-180510Pluggable35 x 30 x 23.4
NES/NPS-180-10-DDevelopment board97.1 x 112.4 x 45
NES/NPS-180-10-ZConnector-ready35 x 47 x 33.6
NES/NPS-180-301530Pluggable35 x 30 x 23.4
NES/NPS-180-30-DDevelopment board97.1 x 112.4 x 45
NES/NPS-180-30-ZConnector-ready35 x 47 x 33.6

Downloads

Download the datasheets now:

Nano Module EtherCAT (NES)

Nano Module CANopen (NPS)

Nano Plus Module EtherCAT / CANopen (NEP/NPP)

The Nano Plus is the smallest servo drive. It can be mounted directly on the motor or within the robotic joints. This drive complies with the requirements of the robotics, AGV, industrial machinery, medical/life-sciences and aerospace industries. It can be mounted to the user PC boards using either connectors, or it can be soldered into the board. An optional interface board provides connectors which simplify the integration into customer applications. The Nano has a third party approved STO feature. Opto-isolators provide connections to user wiring and controls.
Nano Plus Module

Specifications

Nano Plus Module – Technical Data

TypeVoltage [Vdc]Continuous Current [Arms/Adc]Peak Current [Arms/Adc]Form FactorDimensions HxWxD [mm]Digital I/OFeedback
NEP/NPP-090-109-90510Single-axis module35 x 30 x 21.87 / 6 High-Speed DigitalAnalog Sin/Cos, BiSS, SSI, EnDat, Absolute A, Panasonic, Sanyo Denki, Tamagawa, Digital Halls, Incremental
NEP/NPP-090-709-903570
NEP/NPP-180-1020-180510
NEP/NPP-180-3020-1801530

Downloads

Download the datasheets now:

Nano Plus Module EtherCAT (NPP)

Nano Plus Module CANopen (NPS)

Nano HP Module

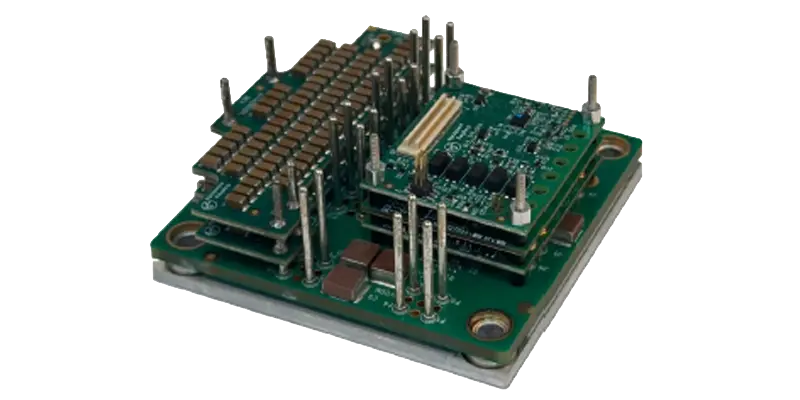

Nano HP Module EtherCAT/ CANopen (NES-HP/NPS-HP)

The Nano Standard High Power brings robust performance to compact drive lineup, delivering up to 140A continuous and peak current in a compact form factor. Designed for applications that demand higher current without sacrificing space or flexibility, the High Power model retains all the core functionality and field-proven reliability of the original Nano Standard—while delivering significantly more power.

Specifications

Nano HP Module – Technical Data

TypeVoltage [Vdc]Continuous Current [Arms/Adc]Peak Current [Arms/Adc]Form FactorVersionDimensions HxWxD [mm]Digital I/OFeedback
NES/NPS-090-140-C9-90140140Single-axis moduleSolderable plug-in31.7 x 66 x 63.57 / 4Incremental, SSI, BiSS, Digital Halls
NES/NPS-090-140-C-ZPlug & Play36 x 66 x 63.5

Downloads

Download the datasheets now:

Nano HP Module EtherCAT (NES-HP)

Nano HP Module CANopen (NPS-HP)

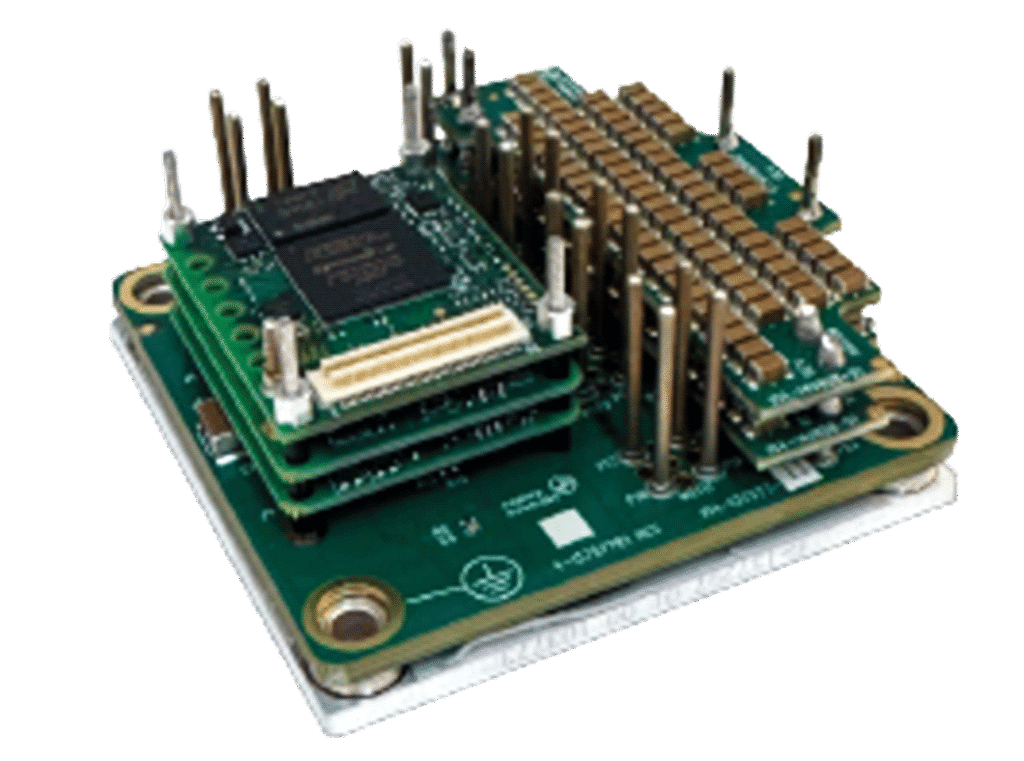

Nano Plus HP Module EtherCAT/ CANopen (NPP-HP/NEP-HP)

The Nano Plus High Power drive takes the advanced feature set of the Nano Plus (NEP-090-70 / NPP-090-70) to the next level with up to 140A continuous and peak current. Perfect for high-demand applications that require enhanced networking, feedback flexibility, and powerful control capabilities, this compact, high-current drive maintains the full functionality of the original Nano Plus—providing maximum performance without compromise.
Nano Plus HP Module

Specifications

Nano Plus HP Module – Technical Data

TypeVoltage [Vdc]Continuous Current [Arms/Adc]Peak Current [Arms/Adc]Form FactorVersionDimensions HxWxD [mm]Digital I/OFeedback
NPP/NEP-090-140-C9-90140140Single-axis moduleSolderable plug-in33 x 66 x 63.57 / 6 High-SpeedAbsolute A, BiSS, SSI, EnDat, Panasonic, Tamagawa, Sanyo Denki, Analog Sin/Cos, Incremental, Back-EMF, Digital Halls
NPP/NEP-090-140-C-ZPlug & Play36.5 x 66 x 63.5

Downloads

Download the datasheets now:

Nano Plus HP Module EtherCAT (NPP-HP)

Nano Plus HP Module CANopen (NEP-HP)
