Hybrid Stepper Linear Actuator

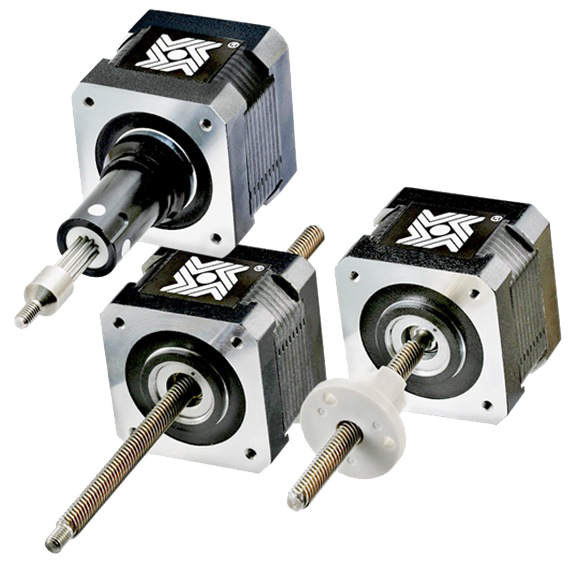

We offer a unique line of hybrid stepper motor linear actuators that open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. These high-performance hybrid actuators directly drive a rotor drive nut on a stainless steel precision acme lead screw. This patented interface reduces tolerances and noise while increasing efficiency and durability over v-thread and bronze nut configuration commonly used in other linear actuators. Actuators are available in captive, non-captive and external linear configurations.

Specifications

Hybrid Stepper Linear Actuator – Technical Data

Series	Frame	Size	Lead/Step	Max. Force	Stroke mm
				(Range)	Captive	Non-Captive and External
		mm	µm	N	mm	mm
16000	Size 6	16	2.5 - 67	2 - 45	9.0 - 38.1	Up to 200
16000 DS	Size 6	16	2.5 - 67	2 - 75	9.0 - 38.1	Up to 200
21000	Size 8	21	2.5 - 40	2 - 75	9.0 - 38.1	Up to 200
21000 DS	Size 8	21	1.5 - 40	2 - 45	9.0 - 38.1	Up to 200
28000	Size 11	28	3 - 50	15 - 90	12.7 - 63.5	Up to 250
28000 DS	Size 11	28	3 - 50	30 - 133	12.7 - 63.5	Up to 250
35000	Size 14	35	1.5 - 50	50 - 220	12.7 - 63.5	Up to 300
35000 DS	Size 14	35	15.8 - 127	50 - 220	12.7 - 63.5	Up to 300
43000	Size 17	43	1.5 - 50	100 - 220	12.7 - 63.5	Up to 400
43000 DS	Size 17	43	15.8 - 127	50 - 337	12.7 - 63.5	Up to 400
57000	Size 23	57	4 - 50	300 - 890	12.7 - 63.5	Up to 500
57000 DS	Size 23	57	12.7 - 127	150 - 890	12.7 - 63.5	Up to 500
87000	Size 34	87	12.7 - 127	400 - 2224	12.7 - 63.5	Up to 500
