Features:

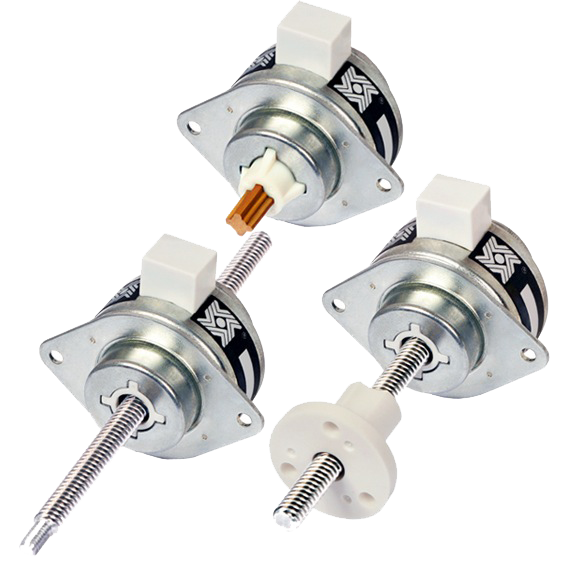

Can-Stack Stepper Motor Linear Actuators – Technical Data
| Series | Diameter | Lead/Step | Max. Force | Stroke mm | |
|---|---|---|---|---|---|
| (Range) | Captive | Non-Captive and External | |||
| mm | µm | N | mm | mm | |
| 15000 | 15 | 20 | 7 | 12.7 | - |
| Z20000 | 20 | 25 - 100 | 3 - 35 | 12.7 | Up to 150 |
| G4 19000 | 20 | 25 - 100 | 3 - 50 | 13 - 31 | Up to 150 |
| Z26000 | 26 | 6 - 100 | 10 - 80 | 13 - 31 | Up to 150 |
| G4 25000 | 25 | 6 - 100 | 10 - 90 | 13 - 31 | Up to 150 |
| 36000 | 36 | 3 - 100 | 15 - 160 | 15.9 | Up to 150 |
| G4 37000 | 36 | 13 - 100 | 70 - 260 | 16 - 38.1 | Up to 150 |
| 46000 | 46 | 12.7 - 400 | 20 - 260 | 23.1 | Up to 200 |
