Stainless Steel AKMH Series

The AKMH Series is built to withstand the most rigorous of washdown regimens. The combination of the AKMH’s IP69K construction and corrosion resistant materials make for a servo motor that will last the life of your machine.
Learn more

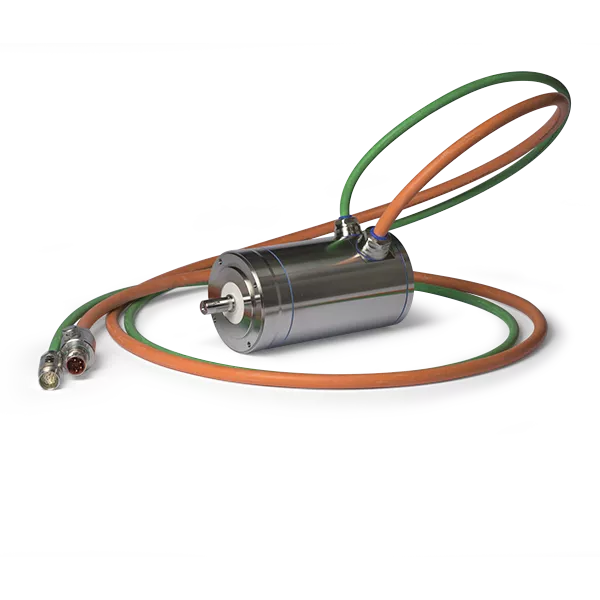

Stainless Steel AKMH Series

Washdown Food Grade

AKMH stainless steel servo motors are engineered to deliver dependable servo performance in applications subject to frequent, aggressive washdown and strict hygienic requirements. With robust stainless-steel construction and IP69K protection, AKMH motors support open machine designs while helping machine builders simplify cleaning, system integration and commissioning.

Features

  • IP69K‑rated motor and cable designed for frequent high‑pressure, high-temperature washdowns and aggressive cleaning agents
  • Smooth, round 316L stainless steel housing for hygiene and corrosion resistance
  • No external bolts, washers, fasteners or crevices that could trap contaminants
  • Sloped rear cover prevents liquid pooling, even in vertical mounting
  • EHEDG and 3A compliant hygienic design
  • FDA‑approved, food‑grade materials and seals

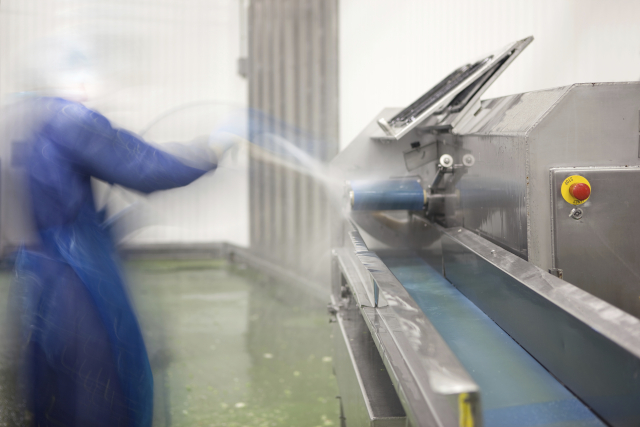

Designed for Efficient Cleaning

The AKMH motor housing is designed to minimize flat surfaces, crevices and exposed fasteners that could retain moisture or contaminants. Sloped surfaces and sealed interfaces support effective washdown procedures and help reduce cleaning effort, contributing to improved machine availability and enabling use in open machine designs without protective covers.

Specifications

Stainless Steel AKMH Seriese – Technical Data
Rated Power Range (kW)Continuous Torque Range (Nm)Peak Torque Range (Nm)Max Speed (RPM)Motor Diameter (mm)
AKMH20.18 - 0.44.31 - 1.151.47 - 4.69800074
AKMH30.41 - 0.900.91 - 2.63.95 - 10.43800085
AKMH40.77 - 1.241.8 - 5.46.23 - 20.26000114
AKMH51.08 - 2.554.17 - 13.211 - 38.55500132
AKMH62.1 - 5.510.4 - 21.527.3 - 58.74000186

Downloads

Download the Datasheets now:

Stainless Steel AKMH Series
