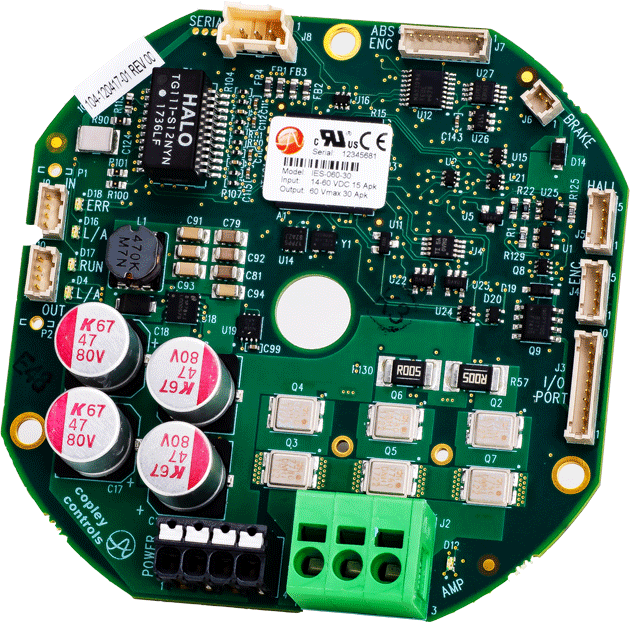

Single- & duo-board servo drive designed for mounting on motors or in robotic joints.
A cutout in the center allows power and network cables to pass through.
Peak currents up to 15 A
Frame size: Ø 60 mm
Integrated Servo Drive – Technical Data
| Type | Voltage [Vdc] | Continuous Current [Arms/Adc] | Peak Current [Arms/Adc] | Form Factor | Dimensions HxWxD [mm] | Digital I/O | Feedback |
|---|---|---|---|---|---|---|---|
| IES-060-30 | 14-55 | 15 | 30 | Single-board, single-axis | 80 x 80 x 20, center cutout diameter 10 | 1 / 2 | Incremental, BiSS, Digital Halls, SSI |
IEL/IPL-060-15 is a miniature dual-board servo drive designed for mounting on motors or in robotic joints.
Integrated Servo Drive Lite – Technical Data
| Type | Voltage [Vdc] | Continuous Current [Arms/Adc] | Peak Current [Arms/Adc] | Form Factor | Dimensions HxWxD [mm] | Digital I/O | Feedback |
|---|---|---|---|---|---|---|---|
| IEL/IPL-060-15 | 14-55 | 7.5 | 15 | Dual-board, single-axis | 60 x 62 x 22.78, center cutout diameter 20 | 2 / 2 | Incremental, SSI, Digital Halls, BiSS |
