The RSA electric rod-style linear actuator combines excellent accuracy with low to high thrust capacity in harsh environments. The RSX family of extreme high force electric linear actuators are an excellent alternative to hydraulic cylinders. RSH hygienic actuators featuring stainless steel construction and IP69K rating.
316 stainless steel construction and IP69K rating provide an electric rod style actuator ideal for food, beverage, and pharmaceutical machines. Forces up to 35.3 kN.

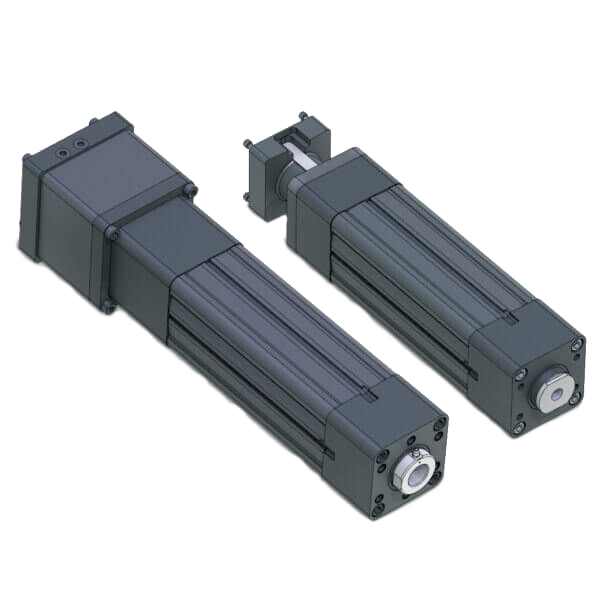

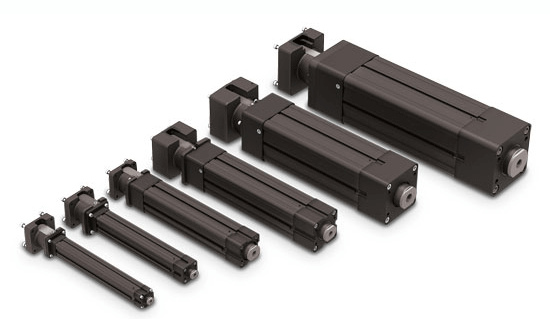

RSA electric linear rod actuators feature accurate and high force performance, making them ideal for replacing pneumatic & hydraulic cylinders. RSA actuators are suitable for general motion control, valve actuation, punch press, injection molding and many more applications.
Features
| Specification | Units | RSA12 | RSA16 | RSA24 | RSA32 | RSA50 | RSA64 |
|---|---|---|---|---|---|---|---|
| Maximum Stroke | mm | 305 | 457 | 610 | 914 | 1,219 | 1,524 |
| Maximum Force | N | 578 | 578 | 7,562 | 18,500 | 35,000 | 58,000 |
| Maximum Speed | mm/s | 3,120 | 3,120 | 1,270 | 1,320 | 1,320 | 1,570 |
Download the Datasheets now:
Features
RSX High Force Electric Linear Actuators – Technical Data
| Specification | Units | RSX10 | RSX15 | RSX20 | RSX25 | RSX33P | RSX50 |
|---|---|---|---|---|---|---|---|
| Maximum Stroke | mm | 1,500 | 1,500 | 1,270 | 660 | 660 | 630 |
| Maximum Force | N | 89 | 133 | 178 | 222 | 294* | 445 |
| Maximum Speed | mm/s | 760 | 760 | 760 | 760 | 510 | 432 |
* Max force applies in extend only.
Download the Datasheets now:
Features:
RSH Hygienic Electric Actuators
– Technical Data
| Size | Units | RSH22 | RSH25 | RSH30 |
|---|---|---|---|---|
| Maximum Stroke | mm | 1,000) | 1,000 | 1,219 |
| Maximum Force | N | 7,562 | 18,500 | 35,330 |
| Maximum Speed | mm/sec | 498 | 498 | 498 |
Download the Datasheets now:
The ERD is an economical electric cylinder and is compatible with many NEMA & metric mount stepper and servo motors to create a flexible, powerful, yet cost-effective electric cylinder solution over traditional pneumatic cylinders.
| Specifications | Units | ERD10 | ERD15 | ERD20 |
|---|---|---|---|---|
| Maximum Stroke | mm | 254 | 609 | 609 |
| Maximum Force | N | 445 | 890 | 2,224 |
| Maximum Speed | mm/sec | 1,016 | 1,016 | 965 |
Download the Datasheets now:
