Linear Servo Actuators

With their integrated servo motor, IMA servo linear actuators enable a space-saving design. IMA servo linear actuators feature an integrated servo motor for a compact, space-saving design. They are available in standard and food-grade versions, with ball screw and roller screw/nut options for a wide range of applications.

Learn more

IMA - Servo Linear Actuators

The IMA servo linear actuators feature an integrated servo motor for a compact, space-saving design. Available in standard and food-grade versions, with a choice of ball screw or roller screw configurations for a wide range of applications.

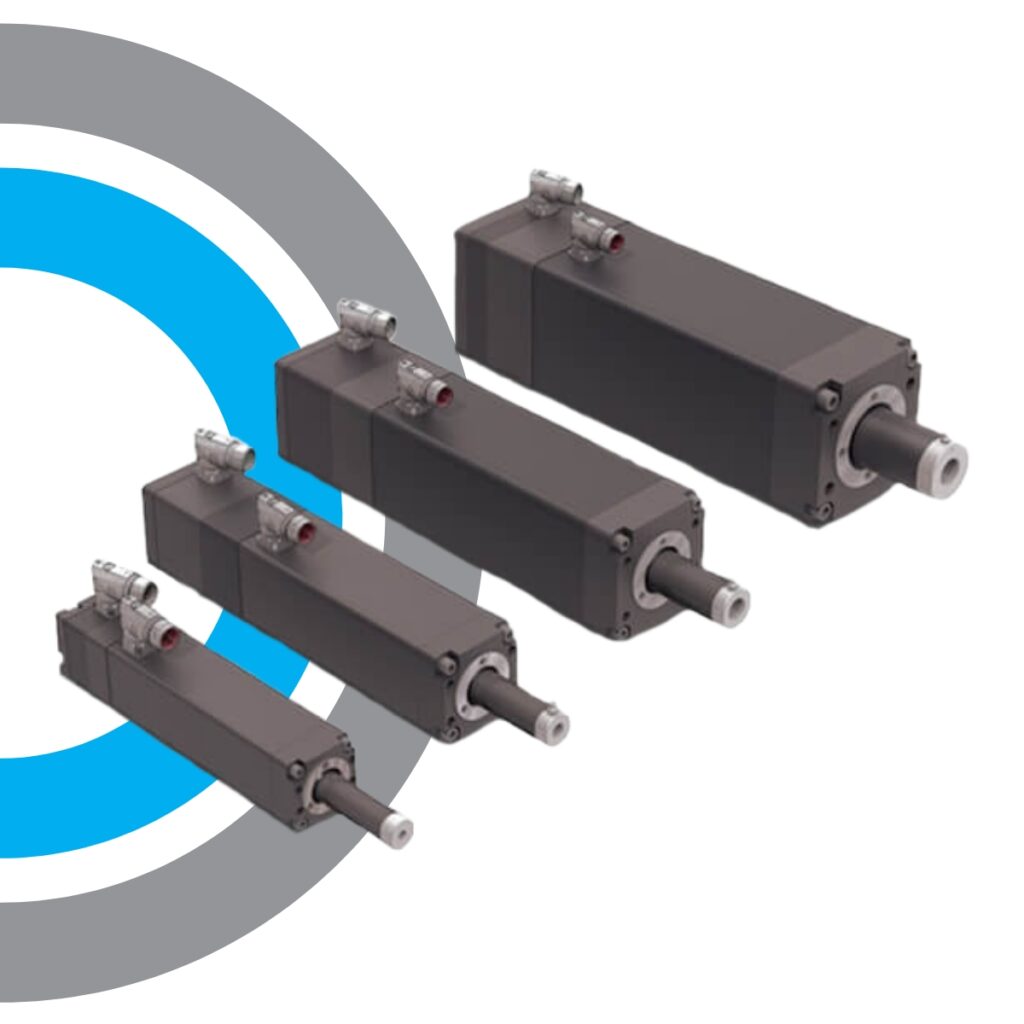

IMA integrierte Servo-Linearantriebe in vier Baugrößen mit Kolbenstange und Steckeranschlüssen

IMA Linear Servo Actuators

Electric rod actuator integrated with a servo motor in a single, compact design that integrates with 3rd party drives and accessories. Forces up to 35.8 kN.

View Product

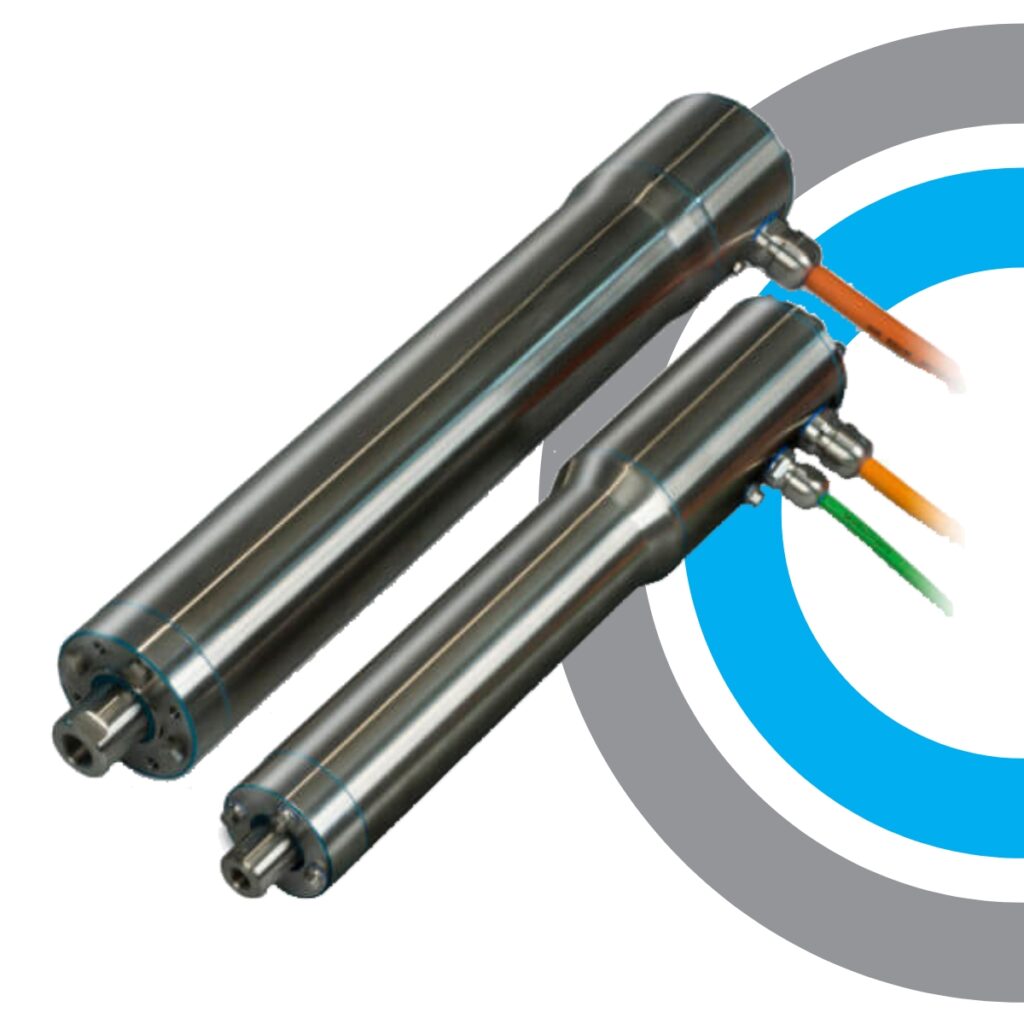

IMA-S hygienische Edelstahl-Servo-Linearantriebe mit Anschlusskabeln

IMA-S Stainless Steel Servo Motor Actuator

Combines a hygienic electric rod actuator and motor into one package. It is IP69K, built with 316 SST, and works with 3rd party drives and accessories. Forces up to 11.1 kN.
View Product
IMA Servo-Linearantriebe in weißer Ausführung für die Lebensmittelindustrie

IMA Food Grade Servo Actuator

Food grade design combines an electric rod actuator and motor into one design with a white epoxy coating for wash-down environments. Integrates with 3rd party drives and accessories. Forces up to 30.6kN.
View Product
IMA integrierte Servo-Linearantriebe in vier Baugrößen

IMA Linear Servo Actuators

The IMA servo linear actuator features a unique integrated servo motor design.
The IMA is an integrated linear servo actuator in a compact, robust housing. IMA servo linear actuators are available with ball screw or roller screw configurations and provide forces of up to 30.6 kN, even in high-duty-cycle applications. The IMA uses a standard servo motor that is available with many different feedback types. A food-grade coating is available for sanitary applications. Ideal for dynamic applications or applications in which the actuator is exposed to high levels of shock and vibration. Convenient support is available for integrating drives from other manufacturers.

The IMA linear servo actuator simplifies the mechanical design.

The unique integrated linear servo actuator eliminates the need for:

  • Hydraulic systems
  • Pneumatic systems
  • Air or oil contamination
  • Motor couplings, adapters, timing belts and gearboxes
  • Air or water cooling
  • Use of multiple suppliers
  • Unnecessary assembly effort

Extremely Long Service Life with IMA Linear Servo Actuators

Thanks to the patented relubrication concept, IMA high-performance linear servo actuators can be relubricated easily and without disassembly, resulting in an extremely long service life.

Specifications

IMA Electromechanical Linear Actuators – Technical Data
SpecificationMaximum Stroke [mm]Maximum Force [kN]Speed [mm/s]
IMA223051,5711
IMA3345711,11.219
IMA4445718,51.334
IMA5545735,8787

Downloads

Download the Datasheets now:

IMA Series Flyer

IMA Series Brochure

IMA-S Stainless Steel Servo Motor Actuator

Developed for the most demanding food and beverage applications
The IMA-S is a hygienically designed, integrated electric servo actuator for the food and beverage industry. The IP69K hygienic design features 316 stainless steel construction as well as hygienic mounting and cable grips, enabling open machine design and effective cleaning in place. The product line also includes the IMA-SA model, which features an internal anti-rotation mechanism. This eliminates the need for an external guide mechanism, making it an ideal actuator for applications such as volumetric filling and pumping. Ideal for dynamic applications or applications in which the actuator is exposed to high levels of shock and vibration. Convenient support is available for integrating drives from other manufacturers.

Improve Your Hygienic Machine Design with IMA-S Food-Grade Actuators

  •  Provide full control over speed and position at all times
  • Hygienic design for food-grade cleaning and sanitization
  • Corrosion-resistant thanks to 316 stainless steel housing
  • Provide IP69K washdown protection with blue seals/O-rings and hygienic fasteners/cable grips
  • Improve performance, flexibility and efficiency compared with fluid power technologies
IMA-S Servo-Linearantriebe aus Edelstahl in hygienischer Ausführung

Specifications

IMA-S Electromechanical Linear Actuators – Technical Data
SpecificationMaximum Stroke [mm]Maximum Force [kN]Speed [mm/s]
IMAS223051,45500
IMAS3345711,1500
IMAS33SA30511,1500

Downloads

Download the Datasheets now:

IMA-S Series Flyer

IMA-S Series Brochure

IMA Servo-Linearantriebe in weißer Ausführung für die Lebensmittelindustrie
IMA Food Grade Servo Actuator

IMA Food Grade Servo Actuator

The food-grade IMA linear servo actuator provides hygienic protection in washdown environments.
Food-grade IMA servo actuators feature a white epoxy coating as well as food-grade lubricants and are available with stainless steel fasteners, rods and rod ends. They feature the same integrated servo motor design as the IMA linear servo actuators, but with a more compact footprint. Food-grade IMA servo actuators are available with ball screw or roller screw configurations and provide forces of up to 30.6 kN, even in high-duty-cycle applications. The standard servo motor is available with many feedback types and can be integrated with most servo drives. Ideal for dynamic applications or applications in which the actuator is exposed to high levels of shock and vibration. Convenient support is available for integrating drives from other manufacturers.

Hygienic Protection and Long Service Life with Food-Grade IMA Servo Actuators

The patented relubrication concept enables simple relubrication with food-grade grease. No disassembly is required, reducing maintenance effort.

Food-grade IMA servo actuators eliminate the need for various components and process steps:

  • Air or oil contamination
  • Hydraulic systems
  • Pneumatic systems
  • Air or water cooling
  • Use of multiple suppliers
  • Unnecessary assembly effort
  • Motor couplings, adapters, timing belts and gearboxes

Specifications

IMA-WP Food-Grade Servo Actuators – Technical Data
SpecificationMaximum Stroke [mm]Maximum Force [kN]Speed [mm/s]
IMA-WP223051,45711
IMA-WP3345711,11.219
IMA-WP4445718,51.334
IMA-WP5545730,6787

Downloads

Download the Datasheets now:

IMA-WP Series Flyer

IMA-WP Series Brochure

Aufgeschlagene Produktbroschüre zum IMA integrierten Servoantrieb von Tolomatic

More Technical Details

Would you like to receive more information about our IMA servo linear actuators? Download our datasheet now.
Download Now
